July 03, 2011

Sorting Edge keys Part II

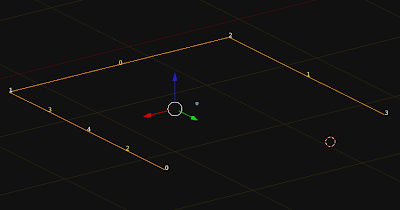

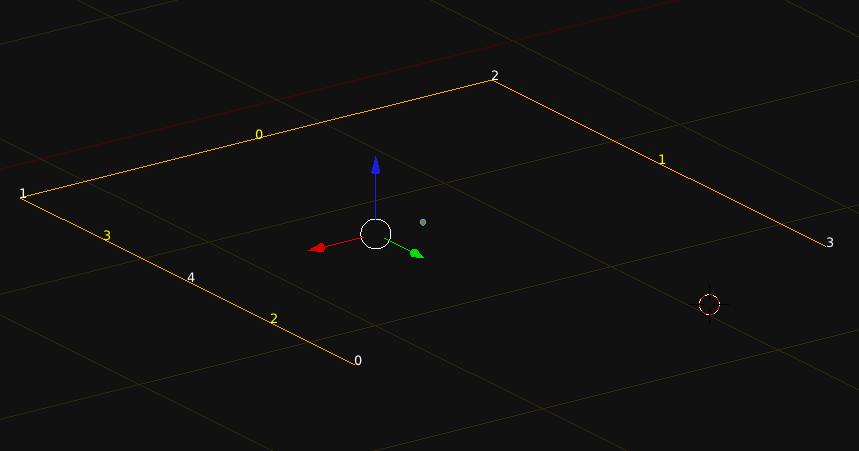

mostly rewritten, this is currently prototype so clunky/verbose code. but works ! :) assumes the polyline (edgebased) object is
1) not closed,
2) not interupted,
3) not already correctly sorted



import bpy

print("\n")
print("="*50)

cobject = bpy.context.active_object

idx_vert_list = []
for i in cobject.data.vertices:
idx_vert_list.append([i.index, i.co])
# print(i.co, i.index)

for i in idx_vert_list:
print(i)


# existing edges
print("=== +")
ex_edges = []
existing_edges = []
for i in cobject.data.edges:
edge_keys = [i.vertices[0], i.vertices[1]]
ex_edges.append(edge_keys)
item = [i.index, edge_keys]
existing_edges.append(item)
print(item)


# proposed edges
print(" becomes")
proposed_edges = []
num_edges = len(existing_edges)
for i in range(num_edges):
item2 = [i,[i,i+1]]
proposed_edges.append(item2)
print(item2)


# find first end point, discontinue after finding a lose end.
current_sequence = []
iteration = 0
while(iteration <= num_edges):
count_presence = 0
for i in existing_edges:
if iteration in i[1]:
count_presence += 1

print("iteration: ", iteration, count_presence)
if count_presence == 1:
break
iteration += 1

init_num = iteration
print("end point", init_num)


# find connected sequence
seq_list = []
glist = []

def generate_ladder(starter, edge_key_list):

def find_vert_connected(vert, mlist):
if len(mlist) == 1:
for g in mlist:
for k in g:
if k is not vert:
return(k, -1)

for i in mlist:
if vert in i:
idx = mlist.index(i)
for m in i:
if m is not vert:
return(m, idx)

stairs = []
while(True):
stairs.append(starter)
starter, idx = find_vert_connected(starter, edge_key_list)
if idx == -1:
stairs.append(starter)
break
edge_key_list.pop(idx)
return(stairs)

seq_list = generate_ladder(init_num, ex_edges)


# make verts and edges
Verts = []
Edges = []

for i in range(len(idx_vert_list)):
print(i)
old_idx = seq_list[i]
myVec = idx_vert_list[old_idx][1]
Verts.append((myVec.x, myVec.y, myVec.z))

for i in Verts: print(i)

for i in proposed_edges:
Edges.append(tuple(i[1]))
print(Edges)

bpy.ops.object.mode_set(mode = 'OBJECT')

prof_mesh = bpy.data.meshes.new("test_mesh2")
prof_mesh.from_pydata(Verts, Edges, [])
prof_mesh.update()
cobject.data = prof_mesh

bpy.ops.object.mode_set(mode = 'EDIT')

This code inspects the edges/verts, strings them in the correct order, makes a new mesh, replaces the current object.data (mesh) with it.


#terminal output.
==================================================
[0, Vector((1.0, 0.9999999403953552, 0.0))]
[1, Vector((0.9999999403953552, -0.9999999403953552, 0.0))]
[2, Vector((-1.0000001192092896, -0.9999998211860657, 0.0))]
[3, Vector((-0.9999996423721313, 1.0000003576278687, 0.0))]
[4, Vector((1.0, 0.0, 0.0))]
=== +
[0, [1, 2]]
[1, [2, 3]]
[2, [0, 4]]
[3, [1, 4]]
becomes
[0, [0, 1]]
[1, [1, 2]]
[2, [2, 3]]
[3, [3, 4]]
iteration: 0 1
end point 0
[0, 4, 1, 2, 3]
(1.0, 0.9999999403953552, 1.0)
(1.0, 0.0, 1.0)
(0.9999999403953552, -0.9999999403953552, 1.0)
(-1.0000001192092896, -0.9999998211860657, 1.0)
(-0.9999996423721313, 1.0000003576278687, 1.0)
[(0, 1), (1, 2), (2, 3), (3, 4)]

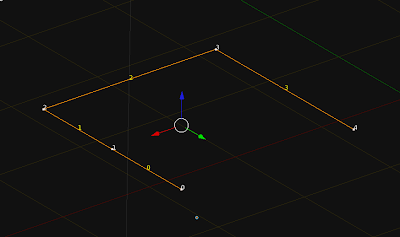

looks like
