OpenGL / bgl in blender 2.5

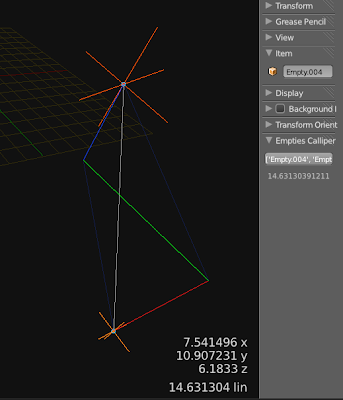

select two empties, run this code.

import bpy
import bgl
import blf
import bpy_extras

from mathutils import Vector
from bpy.props import StringProperty, FloatProperty
from bpy_extras import view3d_utils

'''
helper functions
'''

def get_objects(context):

sel_obs = context.selected_objects
names = [object.name for object in sel_obs if object.type=='EMPTY']
if len(names) == 2:
return names
else:
return None


def get_distance(names_of_empties):

if names_of_empties == None:
return 0.0

coordlist = []
for name in names_of_empties:
coordlist.append(bpy.data.objects[name].location)

return (coordlist[0]-coordlist[1]).length


def get_distance_from_context(context):
distance = get_distance(get_objects(context))
return distance


def get_coordinates_from_empties(object_list):
coordlist = [obj.location for obj in object_list]
return coordlist


def get_difference(axis, coord):

if axis == 'z':
return abs((coord[0]-coord[1]).z)
elif axis == 'y':
return abs((coord[0]-coord[1]).y)
elif axis == 'x':
return abs((coord[0]-coord[1]).x)
else:
return None


def return_sorted_coordlist(coords):
def MyFn(coord):
return coord.z
return sorted(coords, key=MyFn, reverse=True)


'''
openGL drawing
'''


def draw_text(col, y_pos, display_text, view_width, context):

# calculate text width, then draw
font_id = 0
blf.size(font_id, 18, 72) #fine tune

text_width, text_height = blf.dimensions(font_id, display_text)
right_align = view_width-text_width-18
blf.position(font_id, right_align, y_pos, 0)
blf.draw(font_id, display_text)
return


def draw_tetrahedron(region, rv3d, context, clist):

# highest point is apex
apex, baseco = return_sorted_coordlist(clist)

# define the base of the tetrahydron
base1 = Vector((apex.x, apex.y, baseco.z))
base2 = Vector((apex.x, baseco.y, baseco.z))
base3 = baseco

# converting to screen coordinates
screen_apex = view3d_utils.location_3d_to_region_2d(region, rv3d, apex)
screen_base1 = view3d_utils.location_3d_to_region_2d(region, rv3d, base1)
screen_base2 = view3d_utils.location_3d_to_region_2d(region, rv3d, base2)
screen_base3 = view3d_utils.location_3d_to_region_2d(region, rv3d, base3)

# bgl.glBegin(bgl.GL_LINE)

# colour + line setup, 50% alpha, 1 px width line
bgl.glEnable(bgl.GL_BLEND)
bgl.glColor4f(0.1, 0.3, 1.0, 0.8)
bgl.glLineWidth(1)

# from top to base coordinates
bgl.glColor4f(0.6, 0.6, 0.6, 0.8)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_apex)
bgl.glVertex2f(*screen_base3)
bgl.glEnd()

bgl.glColor4f(0.1, 0.3, 1.0, 0.8)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_apex)
bgl.glVertex2f(*screen_base1)
bgl.glEnd()

bgl.glColor4f(0.1, 0.3, 1.0, 0.2)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_apex)
bgl.glVertex2f(*screen_base2)
bgl.glEnd()

# between base coordinates
bgl.glColor4f(1.0, 0.1, 0.1, 0.8)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_base3)
bgl.glVertex2f(*screen_base2)
bgl.glEnd()

bgl.glColor4f(0.0, 1.0, 0.1, 0.8)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_base2)
bgl.glVertex2f(*screen_base1)
bgl.glEnd()

bgl.glColor4f(0.1, 0.3, 1.0, 0.2)
bgl.glBegin(bgl.GL_LINES)
bgl.glVertex2f(*screen_base1)
bgl.glVertex2f(*screen_base3)
bgl.glEnd()


return


def draw_callback_px(self, context):
rounding = 6

objlist = context.selected_objects
names_of_empties = [i.name for i in objlist]
distance_value = get_distance(names_of_empties)
coordinate_list = get_coordinates_from_empties(objlist)

region = bpy.context.region
rv3d = bpy.context.space_data.region_3d
view_width = context.region.width

# major rewrite candidate
l_distance = str(round(distance_value, rounding))
x_distance = round(get_difference('x', coordinate_list),rounding)
y_distance = round(get_difference('y', coordinate_list),rounding)
z_distance = round(get_difference('z', coordinate_list),rounding)
l_distance = str(l_distance)+" lin"
x_distance = str(x_distance)+" x"
y_distance = str(y_distance)+" y"
z_distance = str(z_distance)+" z"

y_heights = 88, 68, 48, 20
y_heights = [m-9 for m in y_heights] # fine tune

str_dist = x_distance, y_distance, z_distance, l_distance
for i in range(len(y_heights)):
draw_text(True, y_heights[i], str_dist[i], view_width, context)

# 50% alpha, 2 pixel width line
bgl.glEnable(bgl.GL_BLEND)

bgl.glColor4f(0.7, 0.7, 0.7, 0.5)
bgl.glLineWidth(1)

bgl.glBegin(bgl.GL_LINE_STRIP)
for coord in coordinate_list:
vector3d = (coord.x, coord.y, coord.z)
vector2d = view3d_utils.location_3d_to_region_2d(region, rv3d, vector3d)
bgl.glVertex2f(*vector2d)
bgl.glEnd()

draw_tetrahedron(region, rv3d, context, coordinate_list)

# restore opengl defaults
bgl.glLineWidth(1)
bgl.glDisable(bgl.GL_BLEND)
bgl.glColor4f(0.0, 0.0, 0.0, 1.0)



'''
tool panel and button definitions
'''


class ToolPropsPanel(bpy.types.Panel):
bl_label = "Empties Calliper"
bl_space_type = "VIEW_3D"
bl_region_type = "UI"

scn = bpy.types.Scene
ctx = bpy.context

@classmethod
def poll(self, context):
names_of_empties = get_objects(context)
if names_of_empties != None:
return True

def draw(self, context):

display_distance_field = False

layout = self.layout
scn = context.scene

names_of_empties = get_objects(context)
names_str = str(names_of_empties)

if names_of_empties != None:
display_distance_field = True
distance_value = get_distance(names_of_empties)


distance_value = str(distance_value)

# drawing
row1 = layout.row(align=True)
row1.operator("hello.hello", text=names_str)

if display_distance_field == True:
row3 = layout.row(align=True)
row3.label(distance_value)


class OBJECT_OT_HelloButton(bpy.types.Operator):
bl_idname = "hello.hello"
bl_label = "Say Hello"

def modal(self, context, event):
context.area.tag_redraw()

if event.type == 'MOUSEMOVE':
print("mouse moved")
elif event.type in ('RIGHTMOUSE', 'ESC'):
context.region.callback_remove(self._handle)
return {'CANCELLED'}

return {'RUNNING_MODAL'}

def invoke(self, context, event):
if context.area.type == 'VIEW_3D':
context.window_manager.modal_handler_add(self)

# Add the region OpenGL drawing callback
# draw in view space with 'POST_VIEW' and 'PRE_VIEW'
self._handle = context.region.callback_add(
draw_callback_px,
(self, context),
'POST_PIXEL')

return {'RUNNING_MODAL'}
else:
self.report({'WARNING'},
"View3D not found, cannot run operator")

return {'CANCELLED'}



bpy.utils.register_module(__name__)



and

latest version (wed 13 july 2011):

i'll want something like
